Smart power supply controller and current limiter for power amplifier

Your price

 79,50 incl. VAT

Stock & ordering

1 in stock


SKU AP-IRC-01B Category


Manufacturer : Audio products


Assembled and tested module with manual.

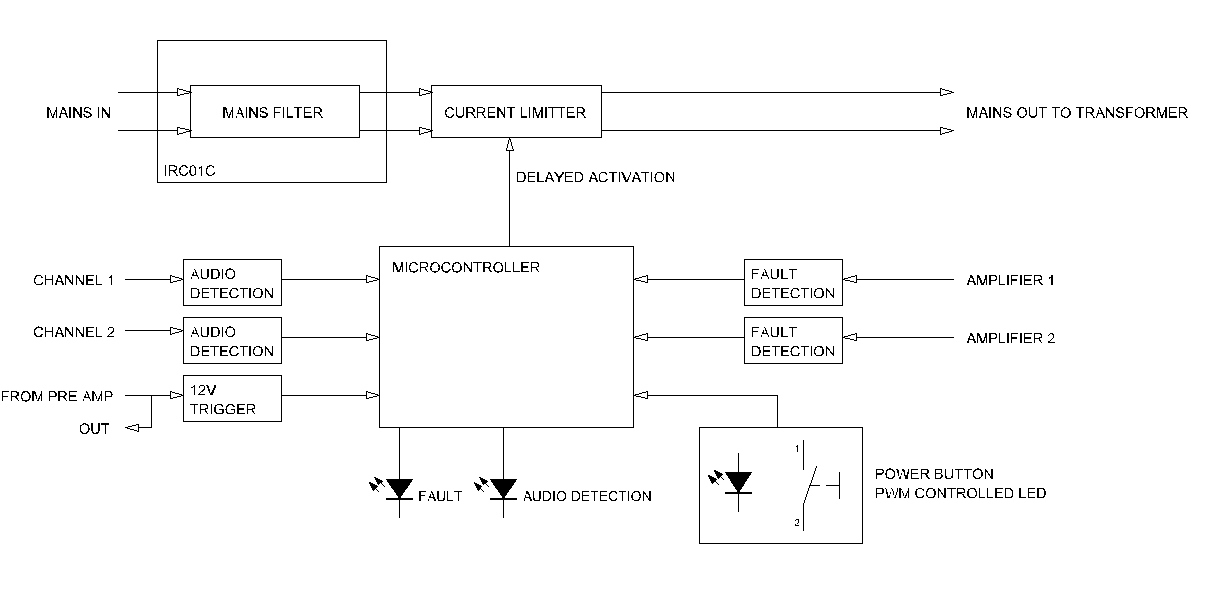

Microcontroller based design.
One button control of functions.
Inrush current limiter for transformer from 500VA to 1000VA
Switchable audio detection circuit for automatic ON/OFF.
12V trigger (DC and AC) for pre-amplifier remote control.
Fault detection circuit for two power amplifiers.
Bottom shielding plate included.
Power LED button with PWM controlled output.
Indicator LED for both 12V trigger and audio detect indicator.
All gold plated Molex headers for interfaces.
Faston PCB connectors for easy and rigid connecting of mains cables.
Power consuption 1 W in standby.


Includes :
Fully assembled and tested module.
Shielding plate (1mm thick).
Printed user manual.

Optional parts;
Push button power switch with blue circular LED indicator and cables.
LED indicator set.
12V trigger board with cable
Error detect and audio detect cables.


Small form factor only 135W x 70D x 35H mm.
Power consumption in standby about 1W

Select your product documentation

User manual

Full schematic
